BTLEMD-32/11CH
- Nordic nRF52832 SoC Solution
- 2 & BT5.1 & BT5 & BT4.2 Bluetooth Specification Certified.
- Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC
- 32-bit ARM® Cortex™ M4F CPU
- 512kB Flash Memory / 64kB RAM
- RoHS & Reach Compliant.
- Dimension：10 x 16 x 2.2 mm
- 32 GPIO
- PCB Antenna
- Interface: SPI, UART, I2C, I2S, PWM, ADC and NFC
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+ and 2.4GHz ultra low-power wireless applications.
Solution: nRF52832 / nRF52811
Size:10x16x2.2
BT Specification:BT 5.1/ BT 5.0 / BT 4.2
Antena:PCB
Working distance:>80m
Ram:nRF52832: 64K / nRF52811: 24K
BTLEMD-32/11PA
- Nordic nRF52832 SoC Solution
- 2 & BT5.1 & BT5 & BT4.2 Bluetooth Specification Certified.
- Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC
- 32-bit ARM® Cortex™ M4F CPU
- 512kB Flash Memory / 64kB RAM
- RoHS & Reach Compliant.
- Dimension：10 x 16 x 2.2 mm
- 32 GPIO
- Chip Antenna
- Interface: SPI, UART, I2C, I2S, PWM, ADC and NFC
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+ and 2.4GHz ultra low-power wireless applications.
Solution: nRF52832 / nRF52811
Size:10x16x2.2
BT Specification:BT 5.1/ BT 5.0 / BT 4.2
Antena:Chip
Working distance:>60m
Ram:nRF52832: 64K / nRF52811: 24K

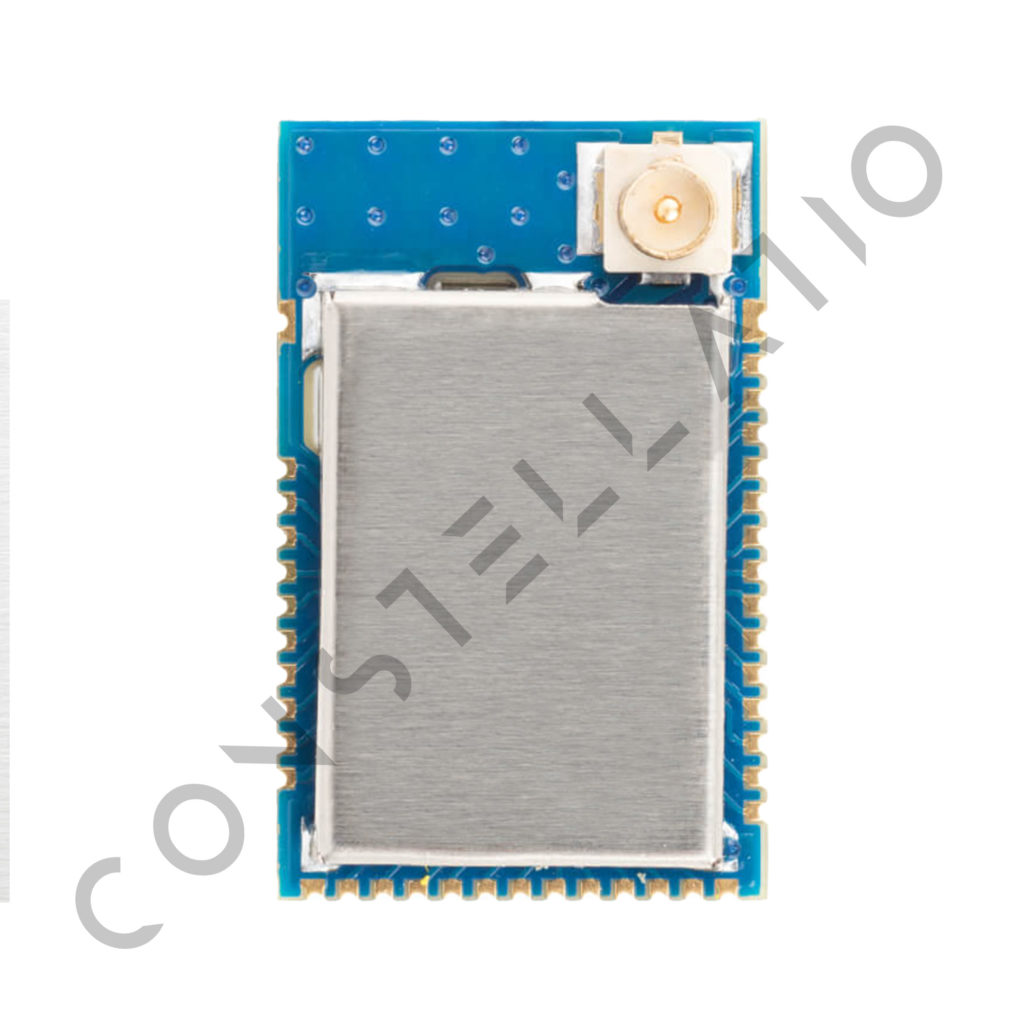

BTLEMD-32/11FL
- Nordic nRF52832 SoC Solution
- 2 & BT5.1 & BT5 & BT4.2 Bluetooth Specification Certified.
- Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC
- 32-bit ARM® Cortex™ M4F CPU
- 512kB Flash Memory / 64kB RAM
- RoHS & Reach Compliant.
- Dimension：10 x 16 x 2.2 mm
- 32 GPIO
- FL connector for external antenna
- Interface: SPI, UART, I2C, I2S, PWM, ADC and NFC
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+ and 2.4GHz ultra low-power wireless applications.
Solution: nRF52832 / nRF52811
Size:10x16x2.2
BT Specification:BT 5.1/ BT 5.0 / BT 4.2
Antena:u.FL connector for External Antenna
Working distance:>80m
Ram:nRF52832: 64K / nRF52811: 24K
